TubeDyne™ Corona Treating System

Product Details

TubeDyne, from 3DT, is a high-performance system for tubing. Catheter material, medical tubing, and other tubing including Pebax, PP, PE and nylon lack sufficient surface tension to create strong bonding with adhesives and printing inks.

TubeDyne overcomes these problems utilizing corona treatment and 3DT's unique delivery system. TubeDyne gently, yet effectively treats tube ends for a permanent bonde with other tubing, housings, and more.

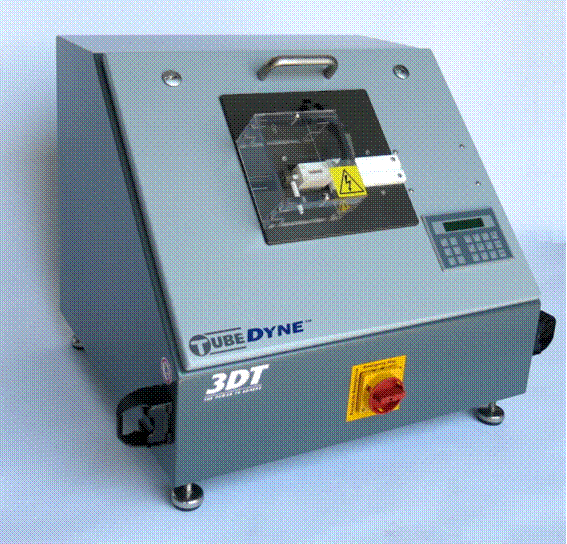

TubeDyne is a compact, self-contained tabletop corona treating system that includes a PLC based control system, HMI interface, sophisticated touch screen, an integrated generator, transformer, electrode assembly, and safety enclosure. Systems are available for tubing with conductive wire and an ozone filter.

This system from 3DT is easy to use and designed for a recipe-based, repeatable treatment. The operator loads parts into a holding device, where the tubes are automatically treated for a preset period of time. Various diameter tubes can be treated with the same set-up. This unprecedented level of flexibility and efficiency saves time and money for the user.

TubeDyne's corona treatment maximizes the adhesion on a wide verity of plastic tubing. Any medical grade tube ends that need to be marked, bonded, coated, etc. receive uniform corona treatment with the TubeDyne system.
